Tow Bar
Mobile Defensive Fighting Position Attachment That Enables a Unit to be Towed
Request a Quote
PRODUCT INFORMATION
DESCRIPTION

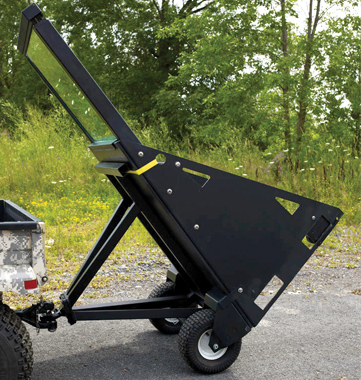

The Tow Bar accessory is an attachment designed for MDFPs with ATV tires, which enables the unit to be towed with a vehicle. Available in pintle ring or 2-inch ball receiver configurations, the Tow Bar makes it quick and easy to move the MDFP short distances, such as across a military base, for use at another location.
Utilizing the MDFP’s existing tires for mobility, the Tow Bar assembly attaches to the unit’s ATV tire axle. This attachment requires no tools and can be completed in approximately one minute. Once attached to a vehicle, the MDFP can be towed at speeds of up to 10 miles per hour. The Tow Bar and MDFP are designed for off-highway use.
Certifications
This attachment is not ballistically-rated.
National Institute of Justice (NIJ) 0108.01 Ballistic Level Breakdown
| Rating | Ammunition | Weight (grains) |
Weight (grams) |
Min/Max (meters/sec) |
Min/Max (feet/sec) |
Number of Shots |
|---|---|---|---|---|---|---|
| Level I | .22 long rifle high velocity lead | 40 | 2.6 | 320 +/- 12 | 1050 +/- 40 | 5 |
| Level I | .38 special round nose lead | 158 | 10.2 | 259 +/- 12 | 850 +/- 50 | 5 |
| Level IIA | .357 mag. jacketed soft poin | 158 | 10.2 | 381 +/- 15 | 1250 +/- 50 | 5 |
| Level IIA | 9mm full metal jacket | 124 | 8.0 | 322 +/- 12 | 1090 +/- 40 | 5 |
| Level II | .357 mag. jacketed soft poin | 158 | 10.2 | 425 +/- 15 | 1395 +/- 40 | 5 |
| Level II | 9mm full metal jacket | 124 | 8.0 | 358 +/- 12 | 1175 +/- 40 | 5 |
| Level IIIA | .44 mag. lead semi-wadcutter gas checked | 240 | 15.55 | 426 +/- 15 | 1400 +/- 50 | 5 |
| Level IIIA | 9mm full metal jacket | 124 | 8.0 | 426 +/- 15 | 1400 +/- 50 | 5 |
| Level III | 7.62mm (.308 Winchester) full metal jacket | 150 | 9.7 | 838 +/- 15 | 2750 +/- 50 | 5 |
| Level IV | .30-06 armor piercing | 166 | 10.8 | 868 +/- 15 | 2850 +/- 50 | 1 |
